Overview

Summary

• High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
• Cooling capacity: 12,000 BTU/H with 21.4 SEER2 / 10.8 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 9.1 HSPF2 / 3.23 COP2 efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $77.00
• Heating: $254.00

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 12,000 BTU/h
• Cooling Capacity Range: 3,800~12,850 BTU/h
• Cooling SEER2: 21.40 BTU/W.h
• Cooling EER2: 10.80 BTU/W.h
• Heating Rated Capacity: 12,000 BTU/h
• Heating Capacity Range: 2,730~12,500 BTU/h
• Heating HSPF2 (Region IV/V): 9.1 / 6.9 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.23 / 1.68 W/W
• Refrigerant Type: R410A/28.6 oz.
• Suitable Area: 250~450 Sq.F

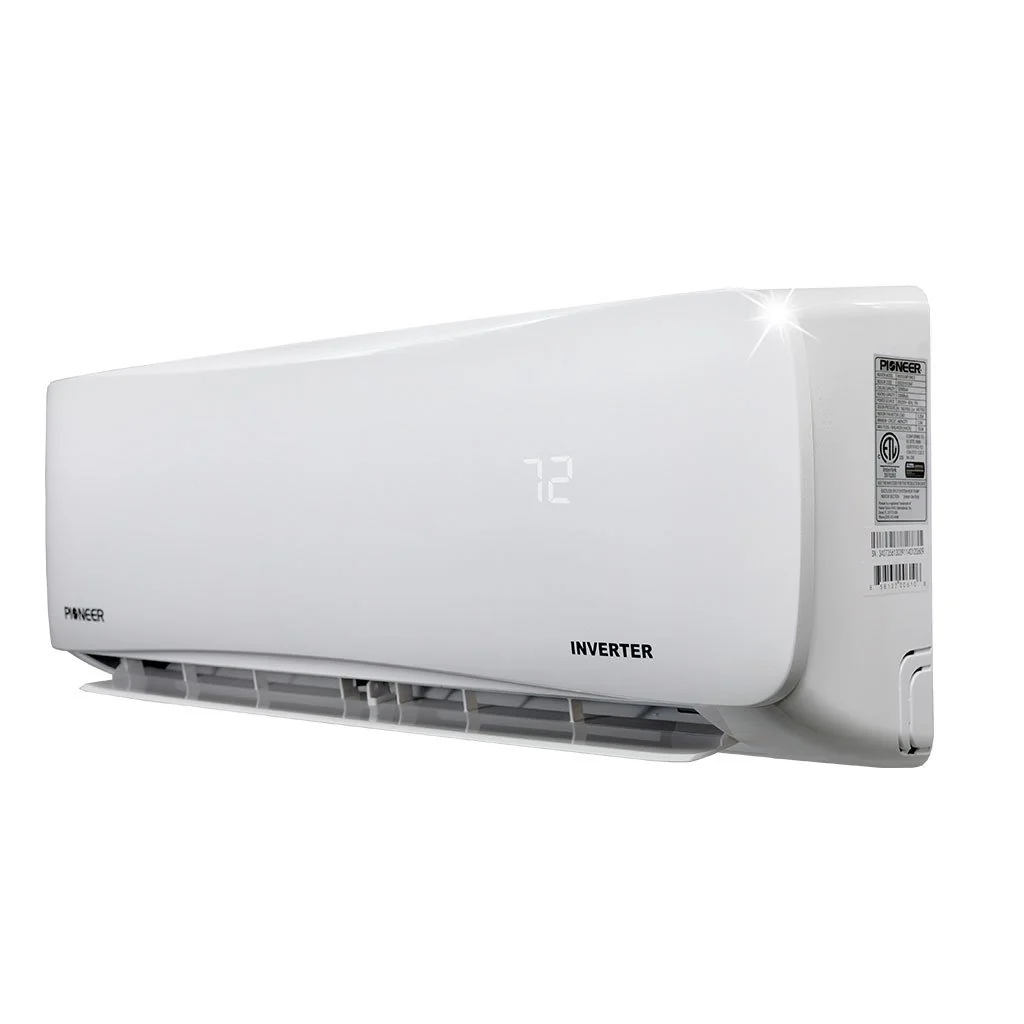

Indoor Unit Data

• Part Number: WS012GMFI20HLD

• Air Flow (Hi/Med/Lo): 317 / 207 / 144 CFM
• Sound Level (Hi/Med/Lo): 37 / 30 / 22.5 dB(A)
• Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8 Inches
• Carton Dimensions (WDH): 34"-1/2 x 11"-1/4 x 15" Inches
• Net / Gross Weight: 19.8 / 25 Lbs

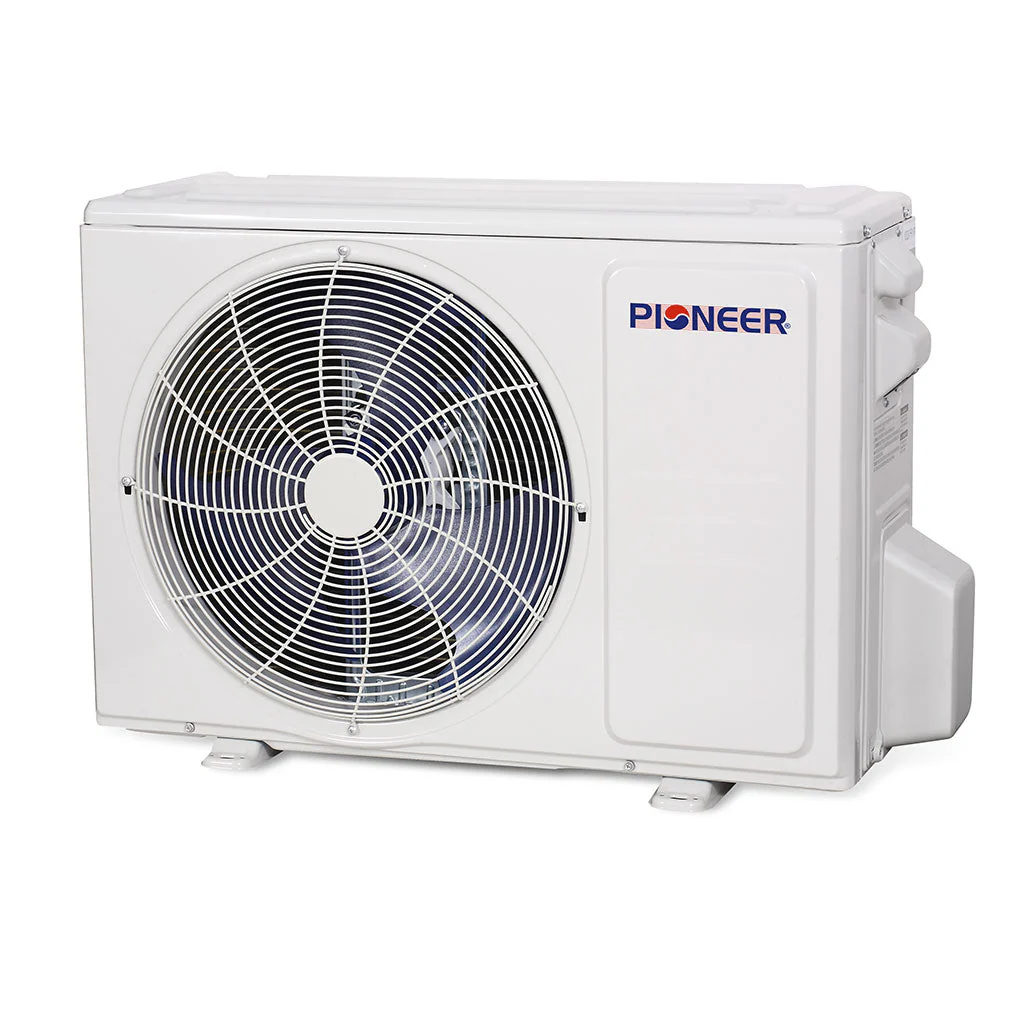

Outdoor Unit Data

• Part Number: YN012GMFI20RPD
• Sound Level: 55.5 dB(A)
• Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8 Inches
• Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24" Inches
• Net / Gross Weight: 59.3 / 64.8 lbs
• Breaker Needed: 15A (double-pole)

Manuals & Downloads

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Disassembly Guide
• AHRI Certificate
• Energy Guide
