Overview

Summary

• High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
• Cooling capacity: 24,000 BTU/H with 18 SEER2 / 9 EER2 efficiency
• Heating capacity: 24,000 BTU/H with 8.6 HSPF2 / 3.03 COP2 efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $176.00
• Heating: $518.00

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 24,000 BTU/h
• Cooling Capacity Range: 6,704~25,300 BTU/h
• Cooling SEER2: 18.0 BTU/W.h
• Cooling EER2: 9.0 BTU /W.h
• Heating Rated Capacity: 24,000 BTU/h
• Heating Capacity Range: 6,900~28,100 BTU/h
• Heating HSPF2 (Region IV/V): 8.6 / 6.6 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.03 / 1.78 W/W
• Refrigerant Type: R410A/63
• Suitable Area: 650~900 Sq.F

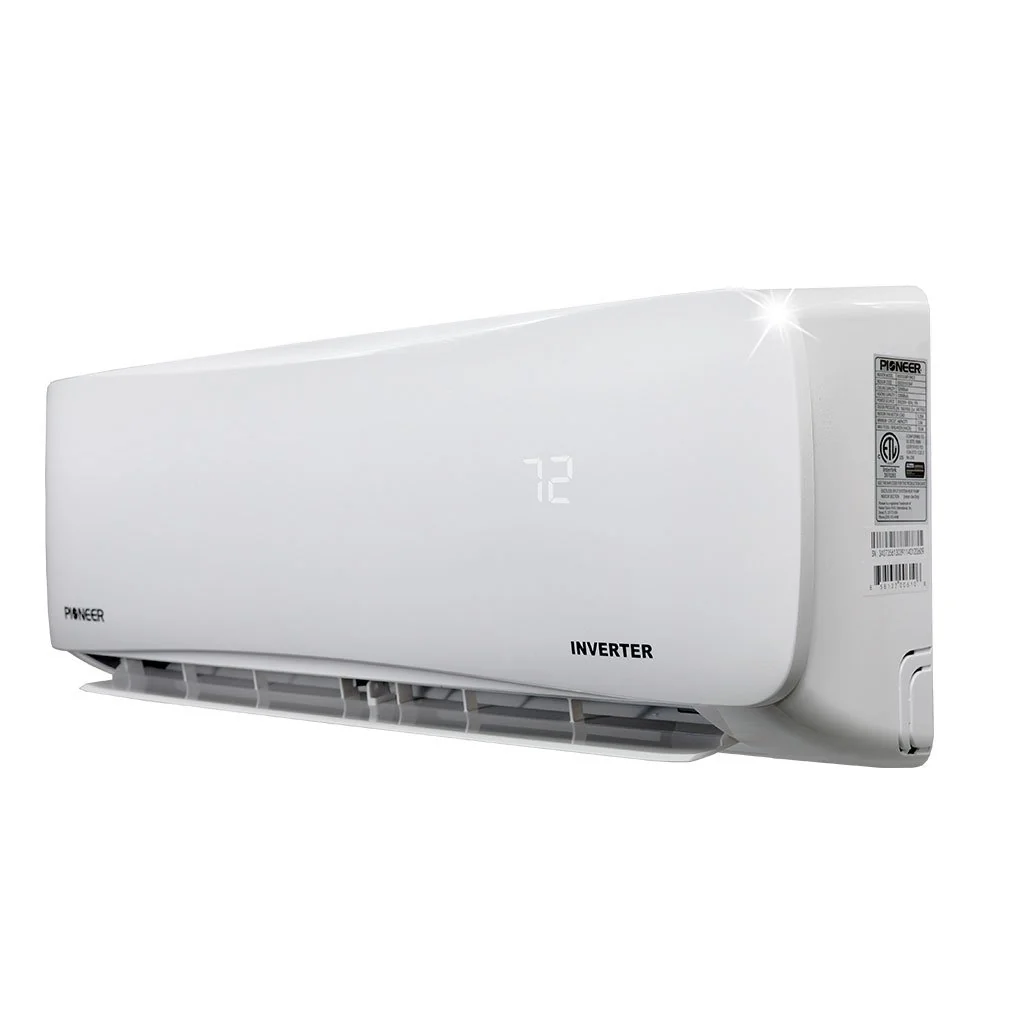

Indoor Unit Data

• Model Number: WS024GMFI20HLD
• Air Flow (Hi/Med/Lo): 588 / 450 / 353 CFM
• Sound Level (Hi/Med/Lo): 45.5 / 39.5 / 35.0 dB(A)
• Net Dimensions (WDH): 42"-1/2 x 8"-7/8 x 13"-1/8 Inches
• Carton/Shipping Dimensions (WDH): 45"-1/2 x 16"-3/8 x 12"-5/8 Inches
• Net / Gross Weight: 30 / 38.6 lbs

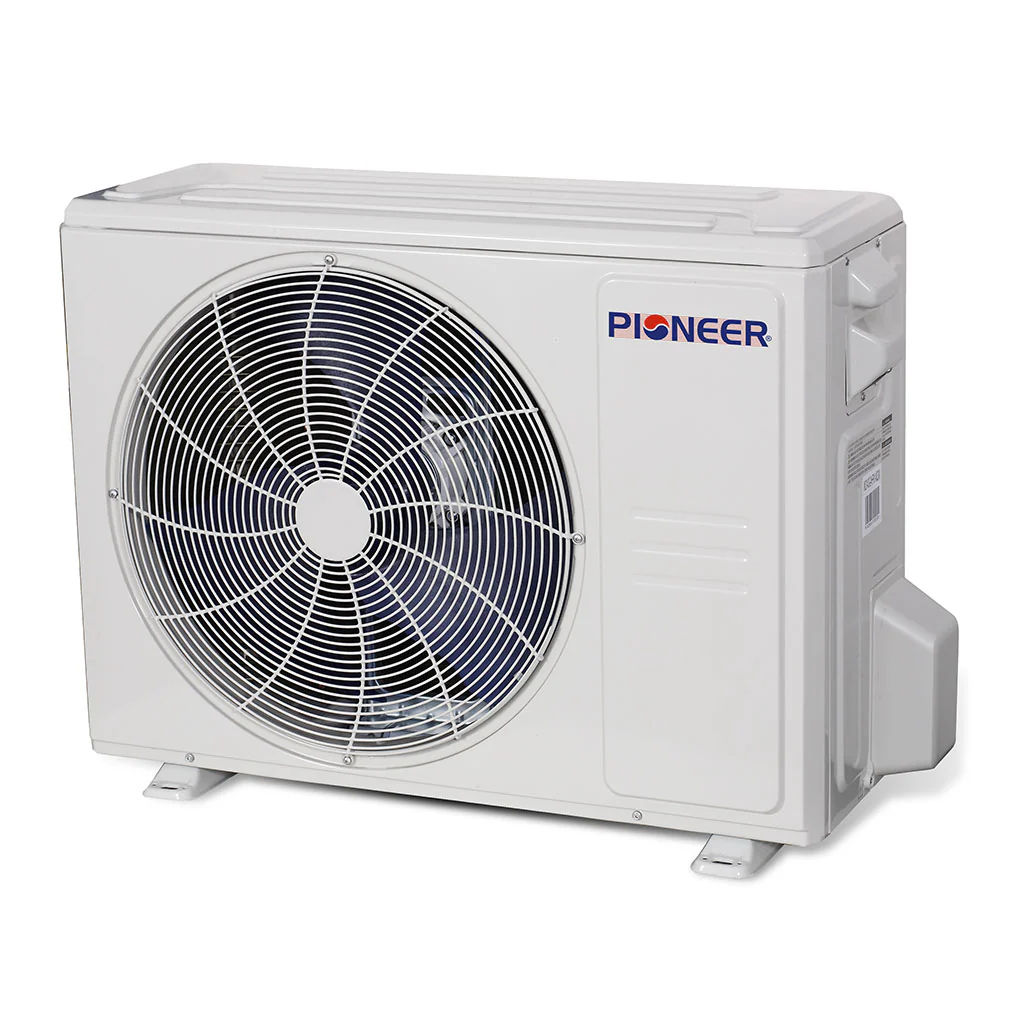

Outdoor Unit Data

• Model Number: YN024GMFI20RPD
• Sound Level: 60.0 dB(A)
• Net Dimensions (WDH): 35" x 13"-1/2 x 26"-1/2 Inches
• Carton Dimensions (WDH): 39"-1/8 x 15"-5/8 x 29"-1/8 Inches
• Net / Gross Weight: 97.9 / 104.60 lbs
• Breaker Needed: 20A (double-pole)

Manuals & Downloads

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Disassembly Guide
• AHRI Certificate
• Energy Guide
