Specifications

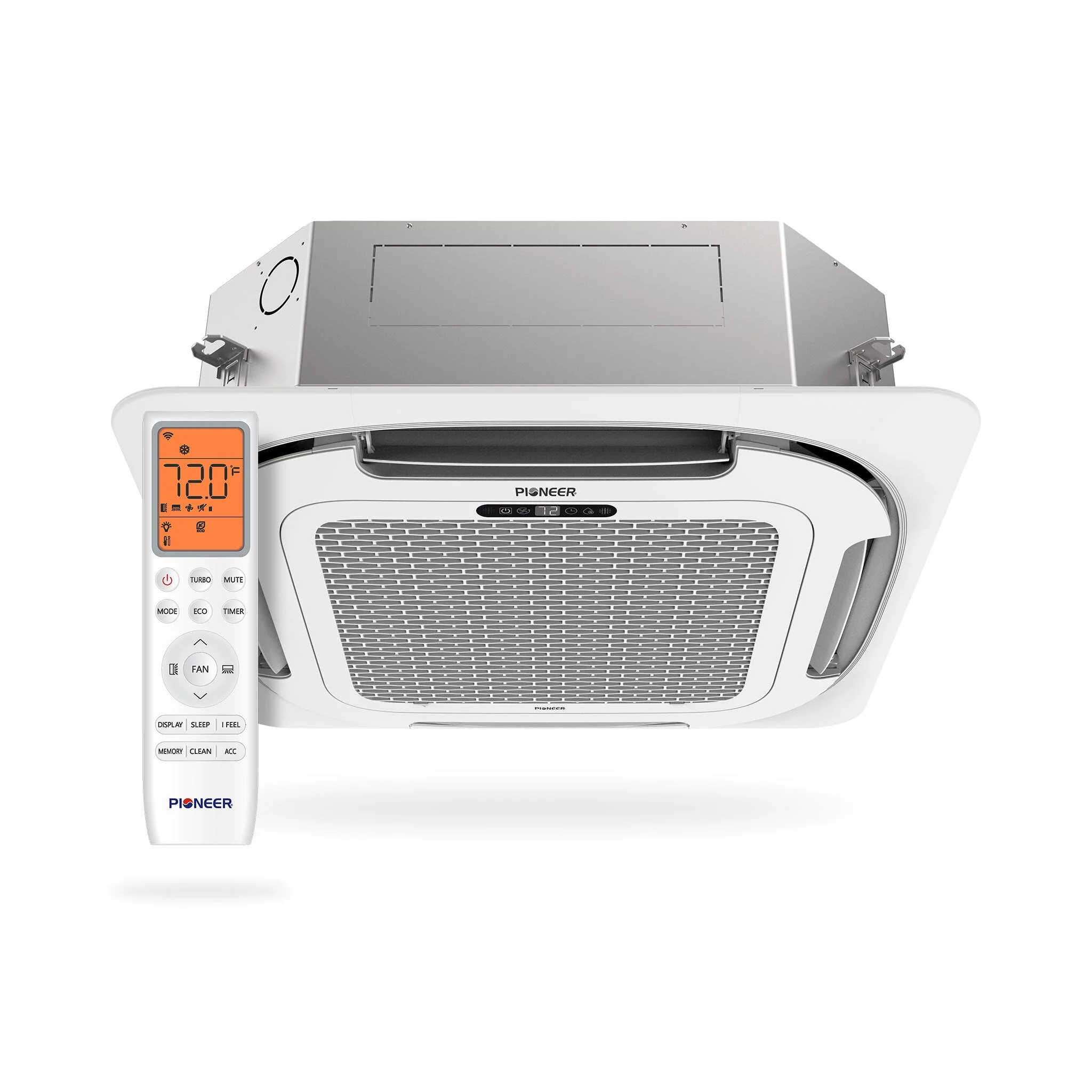

Indoor Unit

• Part Number: CT009GLSILCFHG
• Power Supply: 208~230V, 60Hz, 1Ph
• Refrigerant Type: R454b
• Recommended Room Size: 250~350 sq ft
• Minimum Room Size: 28 sq ft
• Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
• Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
• Net / Gross Weight: 32.0 / 38.6 lbs
• Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Decorative Panel

• Part Number: CT0918DPNL
• Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
• Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
• Net / Gross Weight: 6.0 / 9.5 lbs

Performance

• Cooling Rated Capacity: 9,500 BTU/h
• Cooling Capacity Range: 2,000~10,400 BTU/h
• Cooling SEER2: 23.0 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 9,500 BTU/h
• Heating Capacity Range: 2,500~12,500 BTU/h
• Heating HSPF2 (Region IV/V): 10.5 / 9.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.8 / 1.95 W/W
• Air Flow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 33 / 31 / 30 dB(A)
• Moisture Removal: 55 Pint/day


Multi-Zone Compatibility

• Dual (2) Zone Condenser: YN020GLSI24M2G
• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

Manuals & Documents

• Technical Brochure
• User & Installation Manual


What's Included

• • Indoor Unit
  • Wireless Remote Control
  • Wi-Fi Module w/ Free App
  • Full Installation Kit (unless "No Installation Kit" is selected)
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
