Specifications

• Part Number: WT009GLSI24HLG
• Power Supply: 208~230V, 60Hz, 1Ph
• Refrigerant Type: R454B

• Recommended Room Size: 250~350 sq ft
• Minimum Room Size: 28 sq ft

• Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
• Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
• Net / Gross Weight: 20.7 / 25.1 lbs
• Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Performance

• Cooling Rated Capacity: 9,000 BTU/h
• Cooling Capacity Range: 2,400~11,000 BTU/h

• Cooling SEER2: 24.0 BTU/W.h
• Cooling EER2: 13.0 BTU/W.h
• Heating Rated Capacity: 10,000 BTU/h
• Heating Capacity Range: 2,400~11,000 BTU/h
• Heating HSPF2 (Region IV/V): 9.5 / 8.1 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.81 / 1.9 W/W
• Air Flow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 33 / 31 / 30 dB(A)
• Moisture Removal: 55 Pint/day


Multi-Zone Compatibility

• Dual (2) Zone Condenser: YN020GLSI24M2G
• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

Single-Zone Compatibility

• As part of a Single (1) Zone setup: WYT009GLSI24RL (full set)

Manuals & Documents

• Technical Brochure

• User & Installation Manual


What's Included

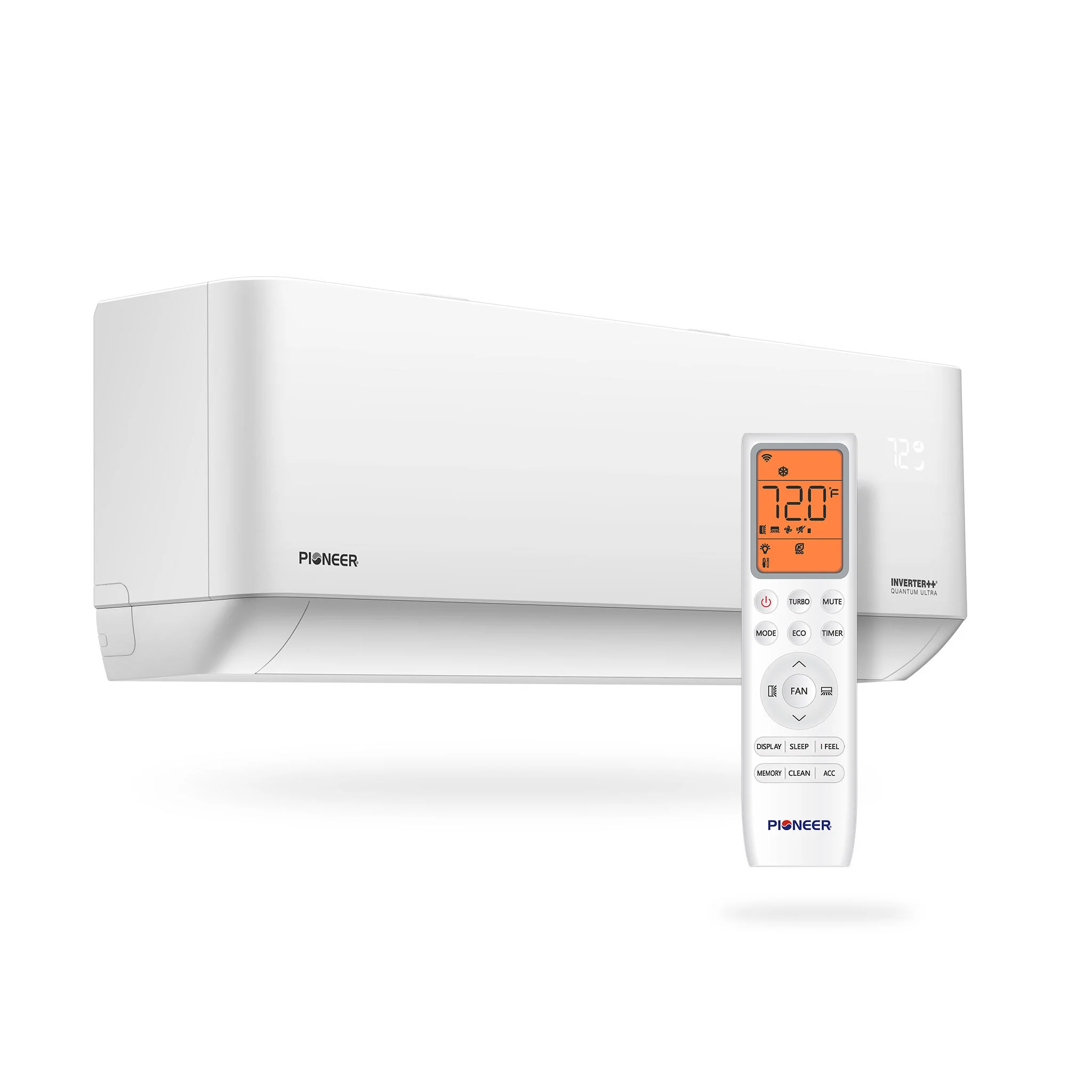

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty
